fish feed making machine

3-4t/h Fish Feed Pellet Line

Fish feed making machine is also named fish feed extruder, and it is used for processing for dogs and cats (pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish.
380V/220V
Voltage
4 kg/h
Capacity(output)
1 Year
Warranty of core components
Production Description
      Fish feed making machine is also named fish feed extruder, and it is used for processing for dogs and cats (pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish. Which is a high and new technical program to catch the developing pet food market. CE certificate best price floating aquarium fish feed pellet food making machine mainly use maize, fish powder, meat powder, and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final puffed pet food. This line is fully automatic, high capacity, and with different shapes. It can produce such as cat food, dog food, fish food, bird food and so on.


Detailed Images

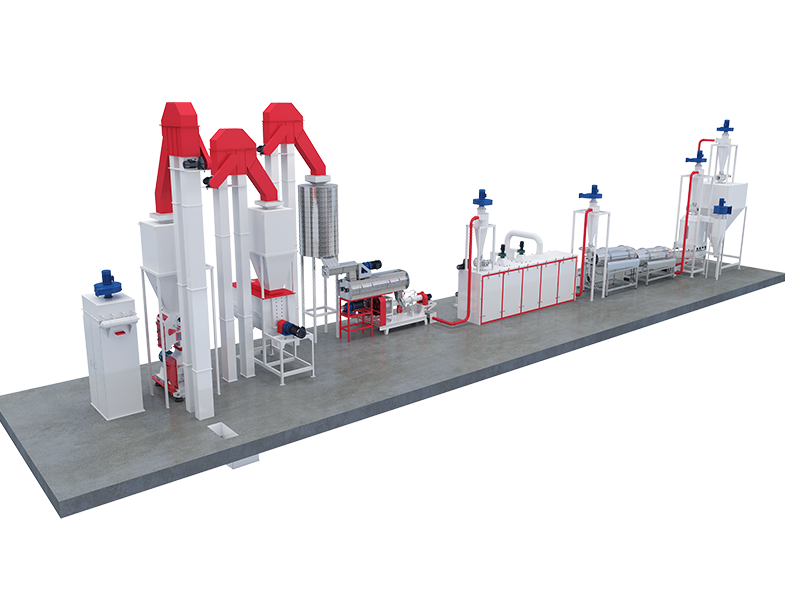

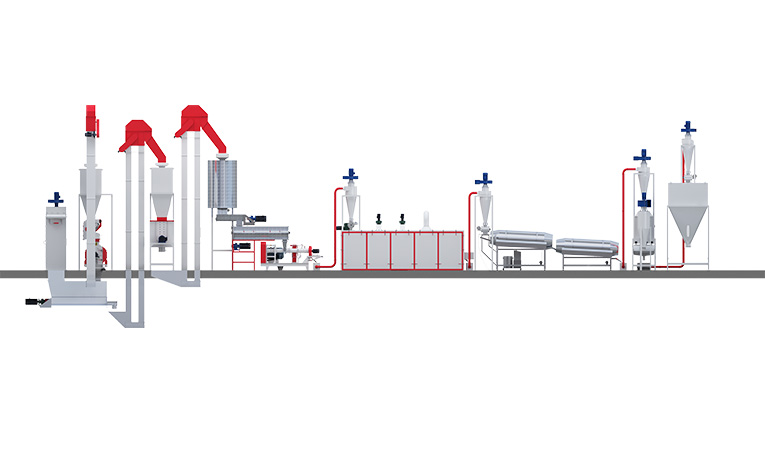

 Mixer → transfer unit → extruder → elevator → dryer → cooler → vibrating screen → elevator → oil spraying machine → automatic packaging machine




Feed Pellets Size









  Machine&Spare Parts







Packing&Shiping






Feature
The cutting system adopts the cutter shaft positioning spring and cutting mode to achieve stepless speed change, which can cut the output to any desired length.
Easy to install, easy to disassemble, easy to disassemble, and easy to operate.
The screw are made of a special wear-resistant high-temperature and high-humidity material, 38 chromium molybdenum aluminum, which is tempered and then heat-treated to form, which has the advantages of wear resistance and long life.
Equipped with a unique pressurized die device to ensure feed yield and quality.
Why Choose Our Fish Feed Machine
01
Can we provide the formula to you?

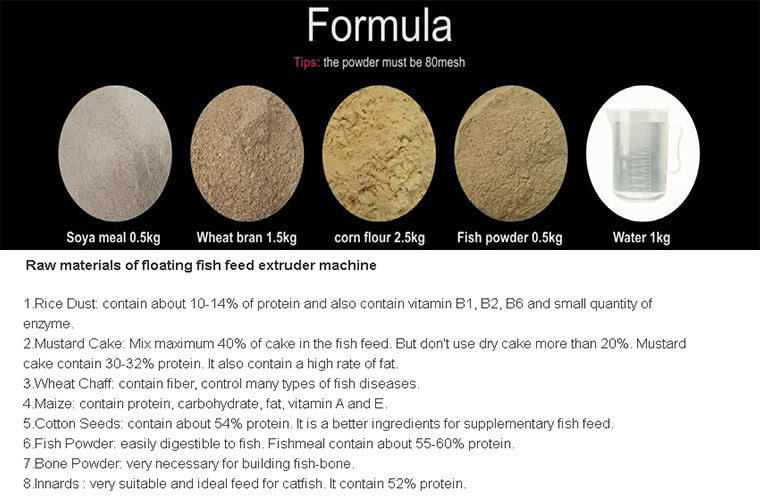

We can provide basic formula. And help customers to produce high-quality food according to the customer’s detailed formula.
02
How to install and adjust?
Normally if machine for production line we will have an engineer come to installation, 100USD/engineer for one day, normally need 2-3 engineer, If small machine we have Operation instructions with machine together, if still have any problems we have professional service for you and teach you. We make sure your machine working very well 100%.
03
How about the “Quality Assurance”?
Our company has been established for more than ten years. And all machines before shipping we have a professional apartment to test and adjust for you, and we also have certificate SGS, PC, SONCAP, it keeps machine good quality, and Nigeria we have a partner can help you solve all problems and, in Abuja, we have a warehouse you also can going for check machine
Parameter
Type capacity(t/h) Main power(kw) Feed power(kw) screw diameter(mm) Cutting power(kw) Modulation power(kw) Size(mm) Weight (kg)
DSP 60-B 0.18-0.2 15 0.4 60 0.4 0.75 1850*1150*1380 520
DSP 70-B 0.25-0.30 18.5 0.75 70 0.75 1.1 2460*1550*1740 940
DSP 80-B 0.35-0.40 22 1.1 80 0.75 1.5 2650*1450*1750 1000
DSP 90-B 0.50-0.60 37 1.1 90 1.1 2.2 2600*2100*1900 2000
DSP 120-B 0.70-0.80 55 1.1 120 1.5 2.2 3200*1950*1900 2200
DSP 135-B 1.0-1.2 75 1.5 135 2.2 3 3750*1980*1800 2500
DSP 160-B 1.8-2.0 90 2.2 160 2.2 4 6600*2800*2330 3800
DSP 200-B 3.0-4.0 132 2.2 200 3 5.5 6600*2900*2350 4500
