200-500kg/h Fish Feed production Line

1mm-12mm
Feed size
200-500kg/h
Production capacity
30-120 kw
Power
Product Description
 Fish feed making machine is also named fish feed extruder machine, and it is used for processing for dogs and cats (pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish. Which is a high and new technical program to catch the developing pet food market. CE certificate best price floating aquarium fish feed pellet food making machine mainly use maize, fish powder, meat powder, and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final puffed pet food. This line is fully automatic, high capacity, and with different shapes. It can produce such as cat food, dog food, fish food, bird food and so on.

Product Application:
1. It is widely used for producing high-grade aquatic feed pellets for fish, catfish, shrimps, crab etc.

2. The final feed pellets have unique shape and good taste, high nutrition and smooth textures.

3. The feeds floating time on water surface can be adjusted by the extrusion degree.

4. Currently, floating fish feed exturder has become an ideal equipment for small and medium fish farm (catfish, tilapia, shrimp etc) holders or fish feed processing plant.


Detailed Images



Equipment configuration

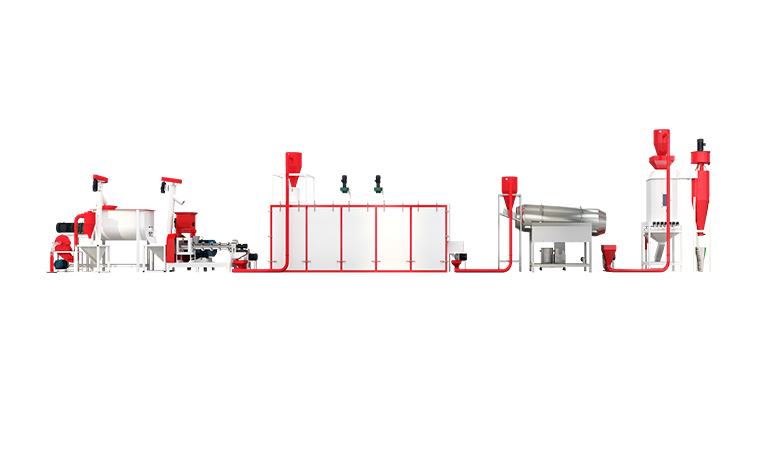

Mixer → screw conveyor → extruder →screw conveyor → dryer → air conveying system →seasoning machine  → air conveying system → cooling machine →manual type weigh&sealing machine






Feed Pellets Size










 Machine&Spare Parts






Packing&Shiping





Features
The cutting system adopts the cutter shaft positioning spring and cutting mode to achieve stepless speed change, which can cut the output to any desired length.
Easy to install, easy to disassemble, easy to disassemble, and easy to operate.
The screw are made of a special wear-resistant high-temperature and high-humidity material, 38 chromium molybdenum aluminum, which is tempered and then heat-treated to form, which has the advantages of wear resistance and long life.
Equipped with a unique pressurized die device to ensure feed yield and quality.
WHY USE THE FISH FEED EXTRUSION MACHINE?
01
How to install and adjust?
Normally if machine for production line we will have engineer come to installation , 100USD/engineer for one day , normally need 2-3 engineer , If small machine we have Operation instructions with machine together, if still have any problems we have professional service for you and teach you. We make sure your machine working very well 100%.
02
How can I know the status of my order?
We will send you photos and videos of your order at different stage in time and keep you informed of the latest information. And about shipping information we will following , we also can give you shipping company website you can following any time .
03
How about the warranty?
First our reception 24Hours on line talking with you If the machine has any problem within one year, we offer repair service for free. And some spare parts for free ,except damaged by person.
parameter
Type Screw diameter(mm) Capacity(t/h) Engine power( kw) Feed ingpower(kw) Cutting power( kw) Machine size(cm) Weight(kg)
FGP-70 70 0.18-0.2 18.5 0.4 0.4 165*140*130 580
FGP-80 80 0.2-0.25 22 0.6 0.6 180*145*130 695
FGP-90 90 0.32-0.35 37 0.6 0.8 210*145*135 950
FGP-120 120 0.5-0.6 55 0.6 1.5 240*195*160 1700
