YOUR CURRENT POSITION: Home > Products > Motor Fish Feed Machine
fish feed making machine

1-2t/h Fish Feed Pellet Line

Fish feed making machine is also named fish feed extruder, and it is used for processing for dogs and cats (pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish.
0.5mm-7mm
Feed Size
380V/220V
Voltage
1 Year
Warranty of core components
Production Description
      Fish feed making machine is also named fish feed extruder, and it is used for processing for dogs and cats (pet food), birds, piglets, frogs, sinking and floating aquatic feeds for fish. Which is a high and new technical program to catch the developing pet food market. CE certificate best price floating aquarium fish feed pellet food making machine mainly use maize, fish powder, meat powder, and some food additive as main raw material, through mixing, extruding, roasting, flavoring to get the final puffed pet food. This line is fully automatic, high capacity, and with different shapes. It can produce such as cat food, dog food, fish food, bird food and so on.

Detailed Images

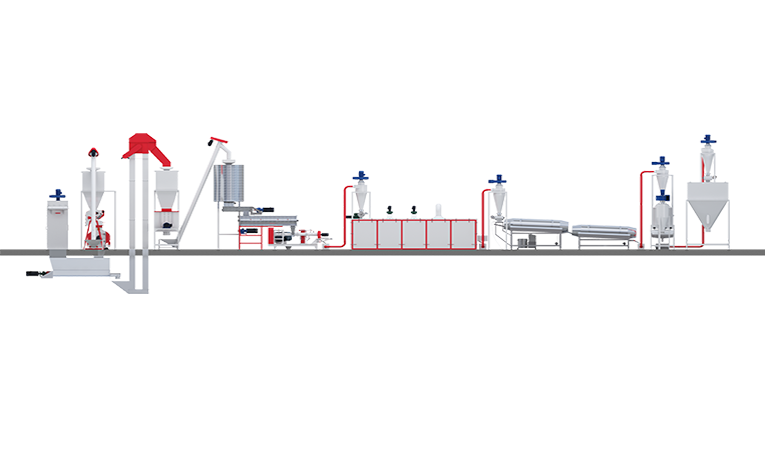

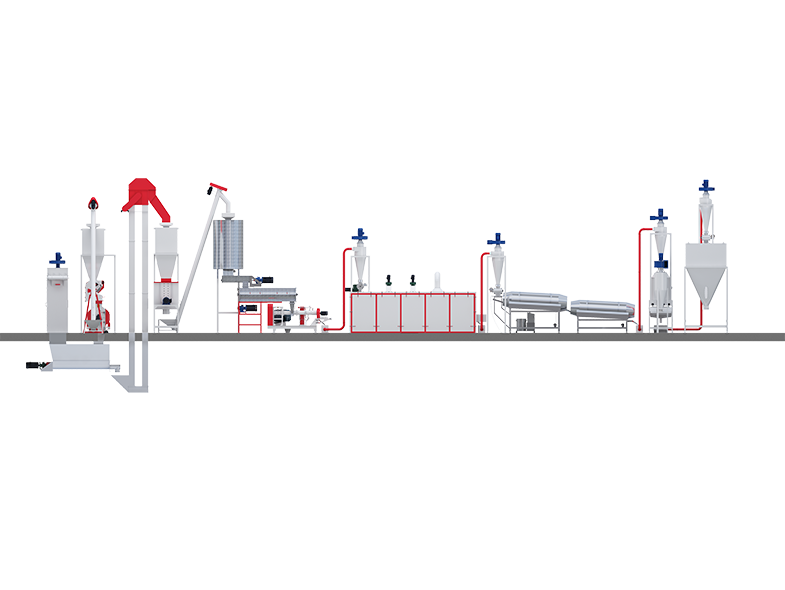

Mixer → transfer unit → extruder → elevator → dryer → cooler → vibrating screen → elevator → oil spraying machine → automatic packaging machine





Feed Pellets Size









Machine&Spare Parts









Packing&Shiping







Feature
The cutting system adopts the cutter shaft positioning spring and cutting mode to achieve stepless speed change, which can cut the output to any desired length.
Easy to install, easy to disassemble, easy to disassemble, and easy to operate.
The screw are made of a special wear-resistant high-temperature and high-humidity material, 38 chromium molybdenum aluminum, which is tempered and then heat-treated to form, which has the advantages of wear resistance and long life.
Equipped with a unique pressurized die device to ensure feed yield and quality.
Why Choose Our Fish Feed Machine
01
Can we provide the formula to you?
We can provide basic formula. And help customers to produce high-quality food according to the customer’s detailed formula.
02
How to install and adjust?
Normally if machine for production line we will have an engineer come to installation, 100USD/engineer for one day, normally need 2-3 engineer, If small machine we have Operation instructions with machine together, if still have any problems we have professional service for you and teach you. We make sure your machine working very well 100%.
03
How about the “Quality Assurance”?
Our company has been established for more than ten years. And all machines before shipping we have a professional apartment to test and adjust for you, and we also have certificate SGS, PC, SONCAP, it keeps machine good quality, and Nigeria we have a partner can help you solve all problems and, in Abuja, we have a warehouse you also can going for check machine
Parameter
Size Information

Floating fish feed pellet machine by Electric Type

Type Screw diameter(mm) Capacity(t/h) Engine power( kw) Feed ingpower(kw) Cutting power( kw) Machine size(cm) Weight(kg)
FGP-40 40 0.03-0.04 5.5 0.4 0.4 140*103*120 220
FGP-50 50 0.06-0.08 11 0.4 0.4 147*110*125 240
FGP-60 60 0.12-0.15 15 0.4 0.4 147*110*125 350
FGP-70 70 0.18-0.2 18.5 0.4 0.4 165*140*130 580
FGP-80 80 0.2-0.25 22 0.6 0.6 180*145*130 695
FGP-90 90 0.32-0.35 37 0.6 0.8 210*145*135 950
FGP-120 120 0.5-0.6 55 0.6 1.5 240*195*160 1700
FGP-135 133 0.7-0.8 75 0.8 2.2 255*2052*165 1900
FGP-160 155 1.0-1.2 90 1.1 3.0  310*265*180 3200
FGP-200 195 1.8-2.0 132 1.5 4.0  310*285*190 3800
Floating fish feed pellet machine by Diesel Type

Type Screw diameter(mm) Capacity(t/h) Diesel horse power(HP) Feeding power( kw) cutting power(kw)) Machine size(cm) Weight(kg)
FGP-40C 40 0.03-0.04 12 0.4 0.4 140*103*120 380
FGP-50C 50 0.06-0.08 18 0.4 0.4 147*110*125 420
FGP-60C 60 0.12-0.15 25 0.4 0.4 147*110*125 530
FGP-70C 70 0.18-0.20 30 0.4 0.4 165*140*130 550
FGP-80C 80 0.2-0.25 35 0.6 0.6 180*145*130 650
